Our Approach
Wood Selection and Milling:
-
1. FAS Grade Lumber
FAS Lumber is sourced for the best 2-piece body
-
1A. Exotic/ Premium Woods
Figured Maple, Mahogany, Pine, Korina, Reclaimed.. the list goes on
-
2. Hand Selected
Every guitar body is visually inspected to make an eye-catching guitar body
-
3. Milled on Jointer
All mill work is done with hand tools
-
4. Thickness Planed
Wood is thickness planed to correct custom and vintage specs
-
5. 2-Piece Body Glue Up
Hand selected wood, is glue joined into a guitar body billet
-

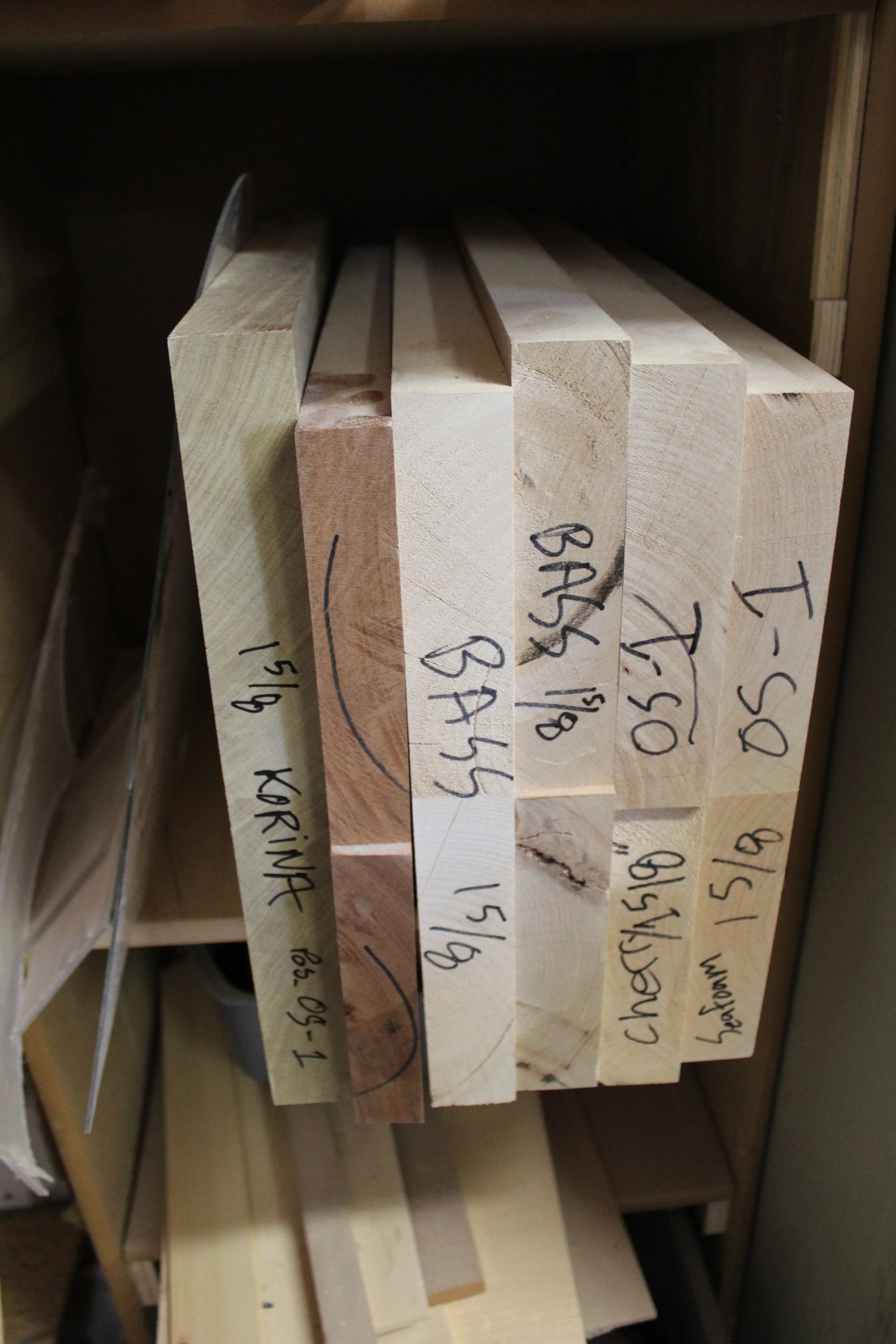

6. Wood Billet Guitar Body's
Wood billet bodies awaiting one of our various templates to take on the recognizable shape of a guitar or bass
-
7. Template Selected
Template is selected and precisely located on the wood billet
Always Hand-Tooled, There is 🚫 NO Automation or CNC 🚫 in The Constructing of Our Guitars or Basses
-
Template Layout
BP-3 Bass Is laid out onto FAS Alder
-
Band Saw
Band saw is used to get the rough body shape. The goal is to leave no more than 1/16” for the table top router
-
Body Rout
A table top 3-1/4HP router is used with a helical bit to get the bodies final shape
-
Drill Press
I have 2 drill presses, one for precision: bridge, tail-piece and neck locating, and a slower RPM machine for hogging out cavities
-

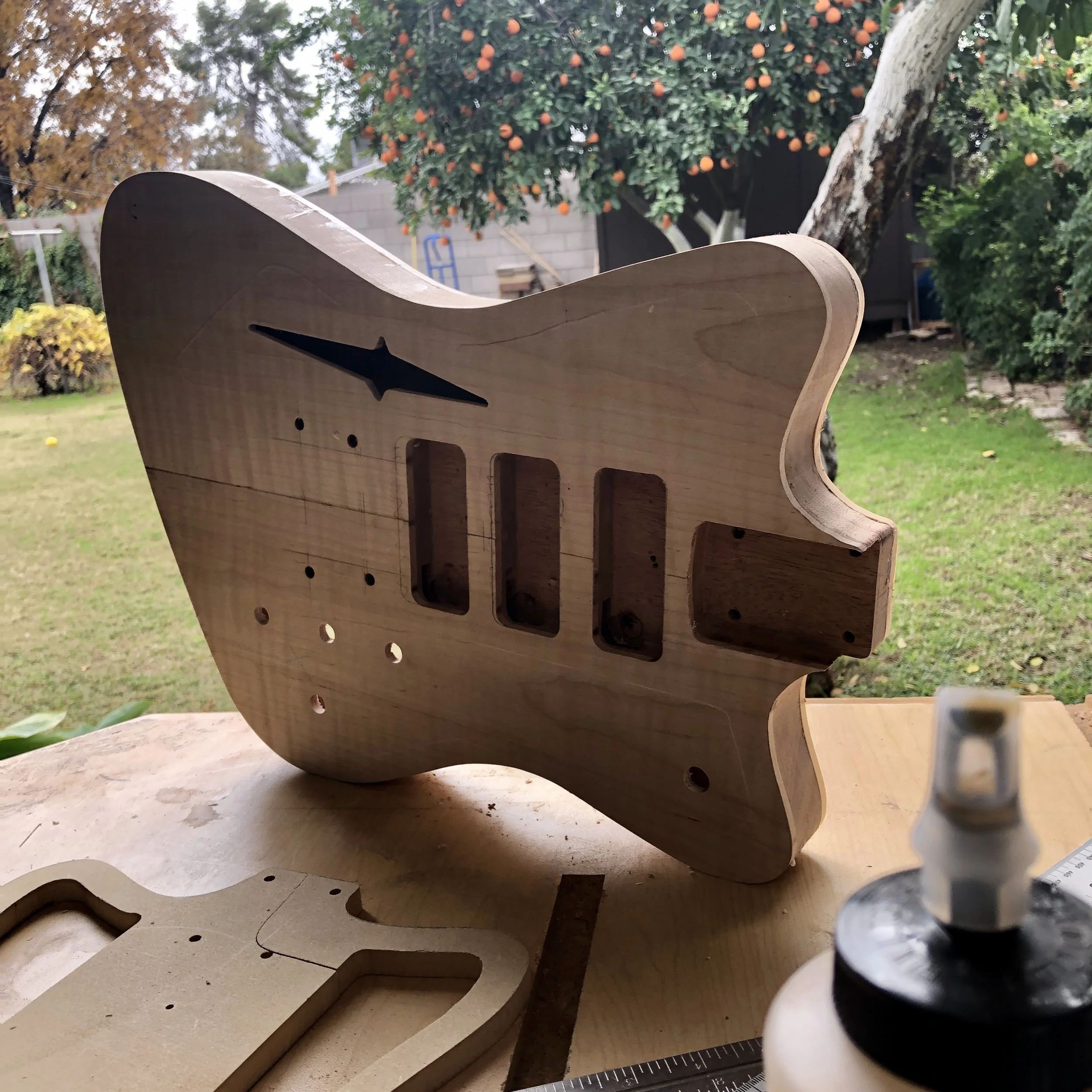

Cavity Rout
Multiple routers are in the shop for cavity finishing, round-overs, binding, neck pockets and just about everything
-
Neck Pocket
Further templates are used through out the process on neck pockets, and multiple pickup/electronic configurations
-

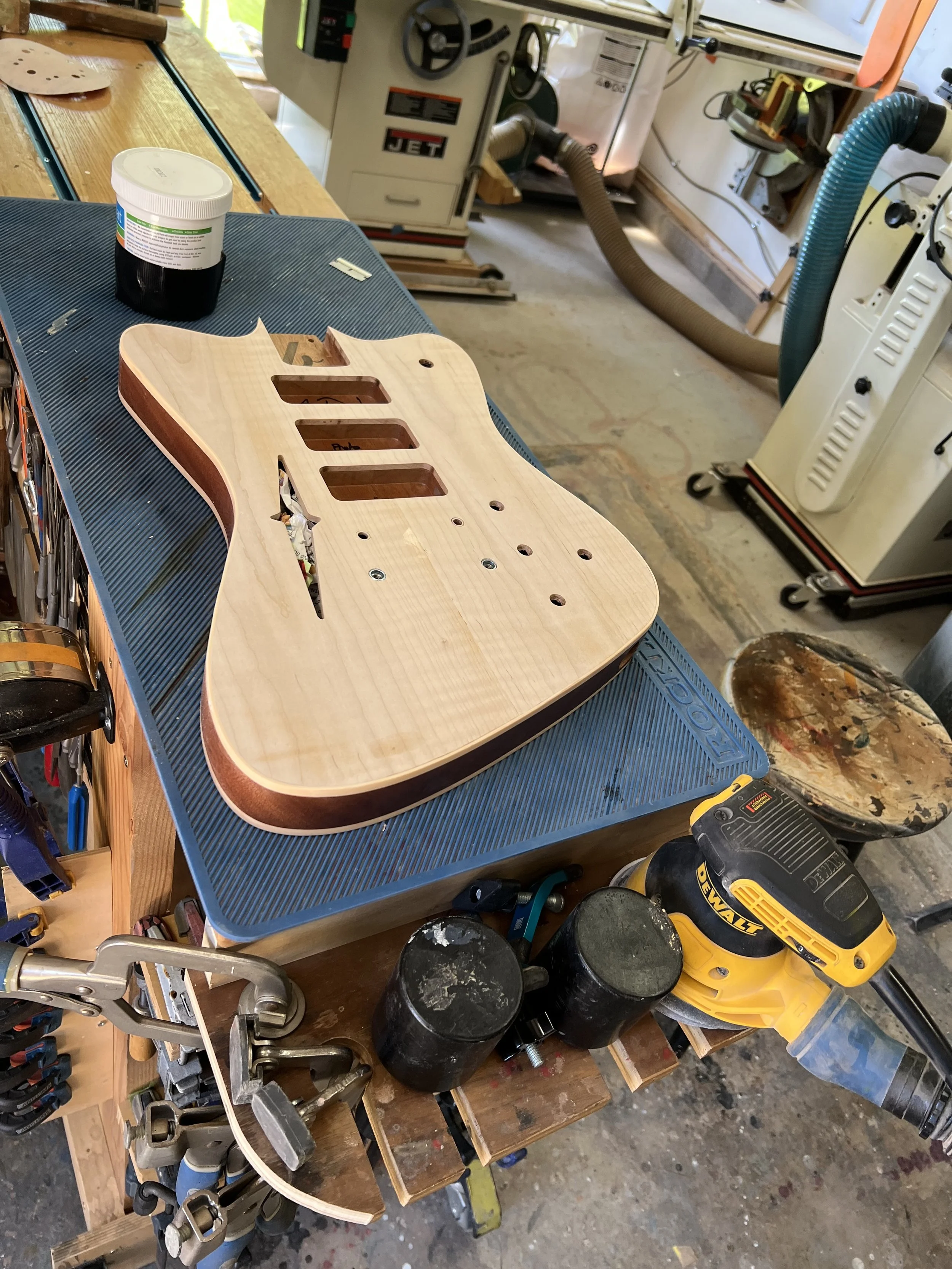

Ready for Prep and Paint
A DS-12 body beginning the process of pore-filling, and scraping the binding and top before it gets base clear coats
Beautiful Neck Builds
-
PT-1 Necks
PT-1 Maple necks that are awaiting another coat
-
Roasted BP-3 Neck
Highly figured ready for wet sand and final polish
-

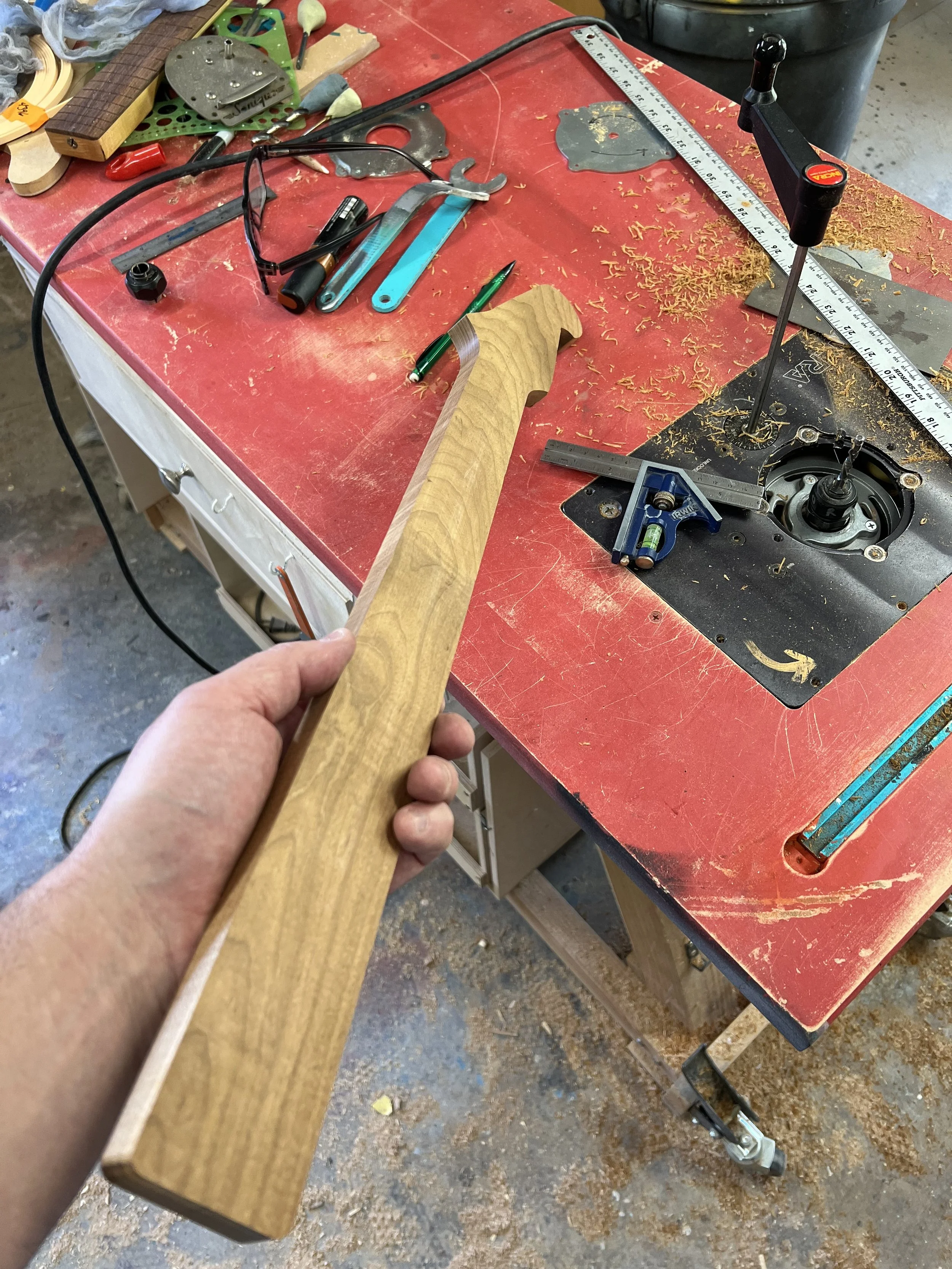

OS-1 Neck Profile
OS-1 roasted maple neck flush trimmed to profile and width
-

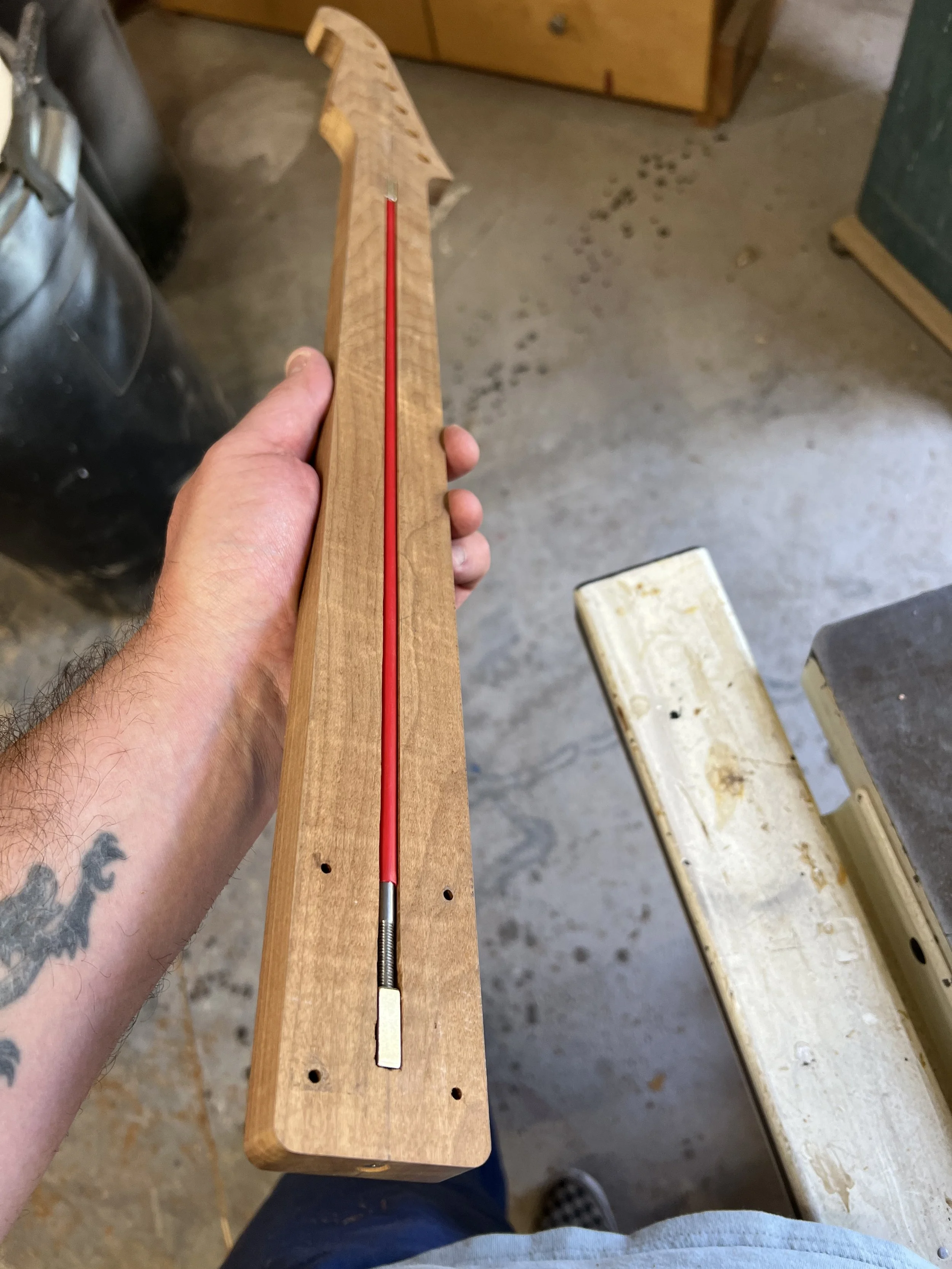

Truss Rod Channel Routed
Awaiting fretboard glue-up
-

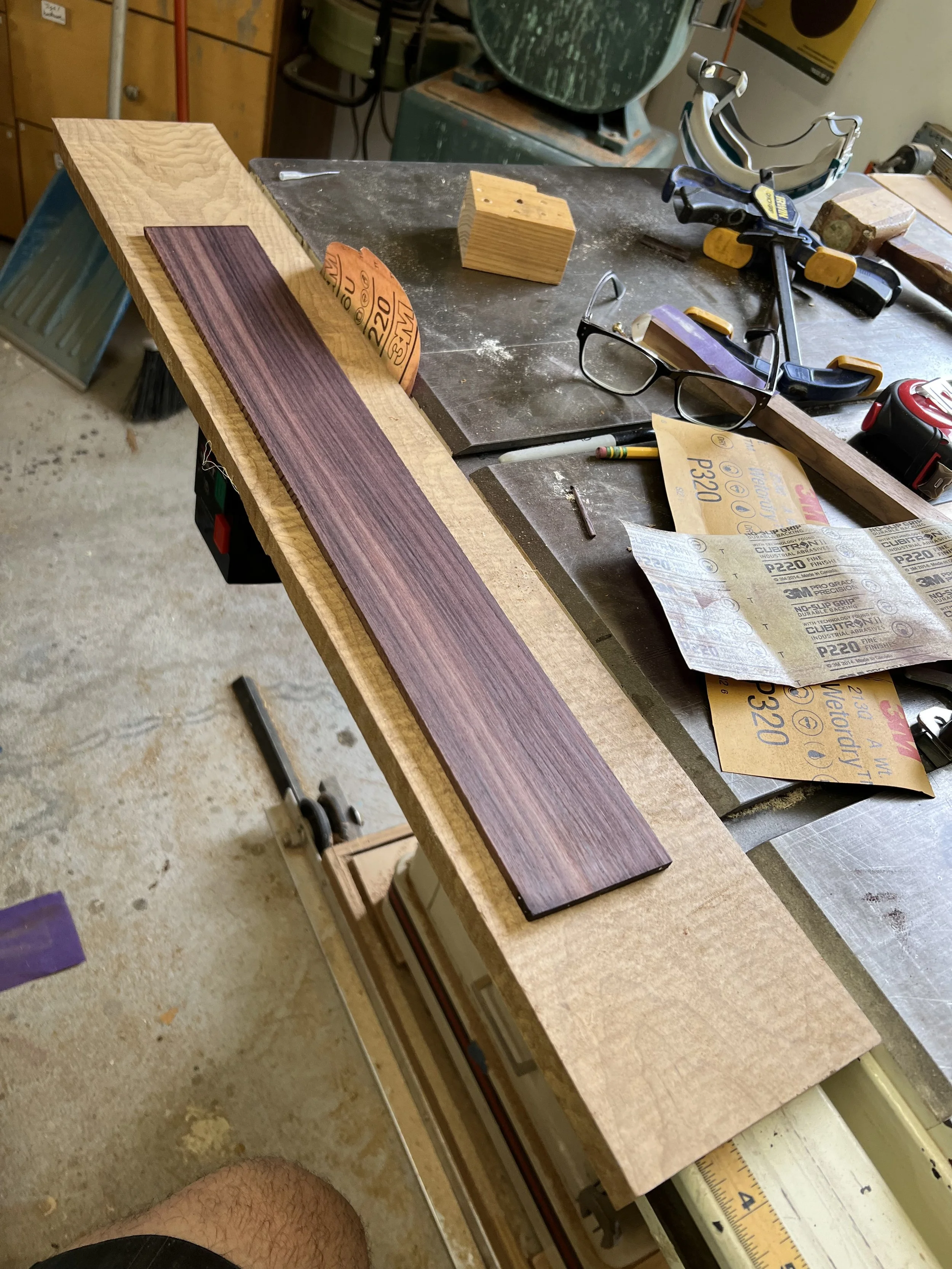

Rosewood Board
Rosewood fret board in contrast to the “son to be” figured roasted maple neck
-

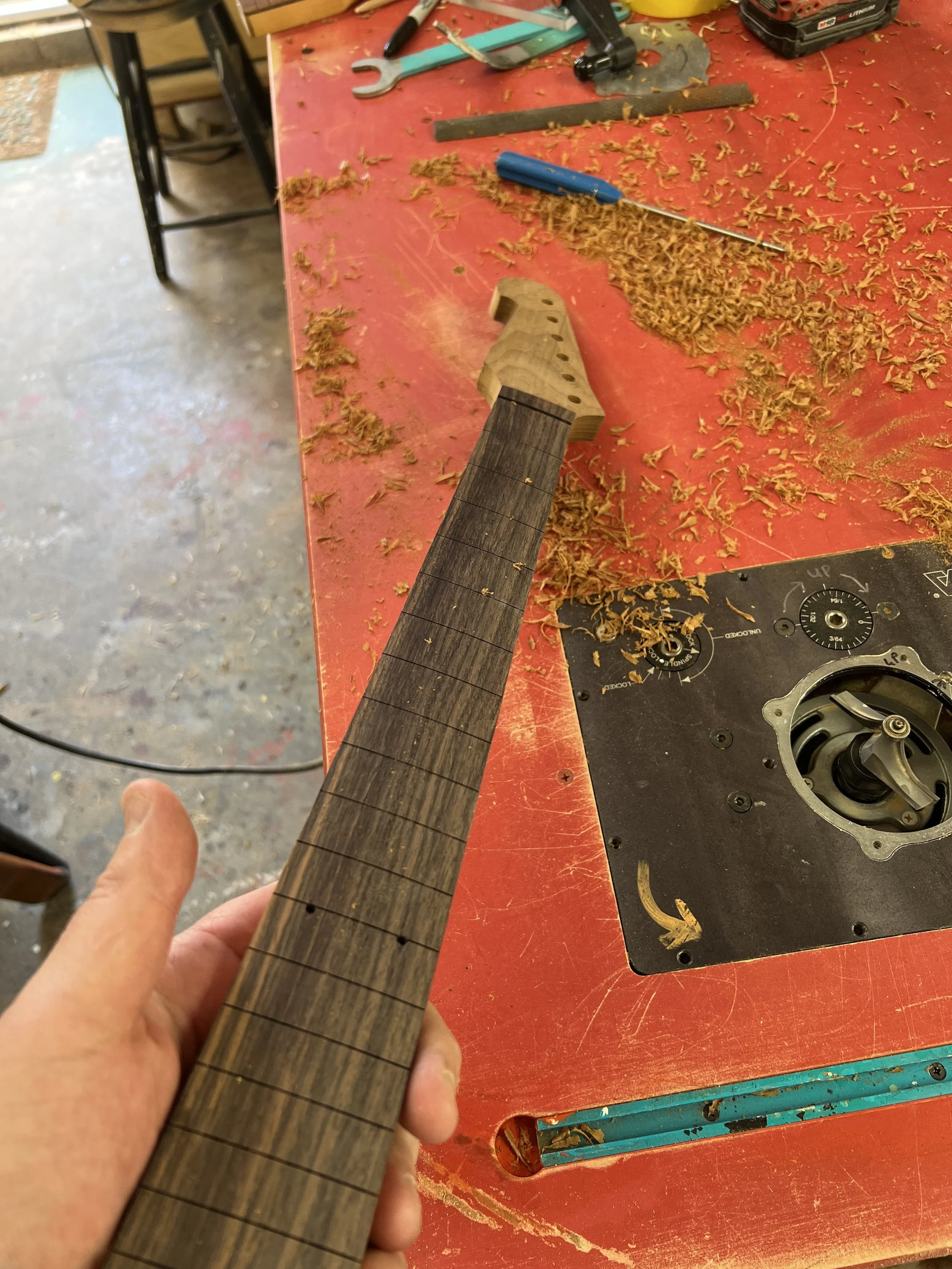

Fret Board Trimmed
Fret board flush trimmed after glue-up
-

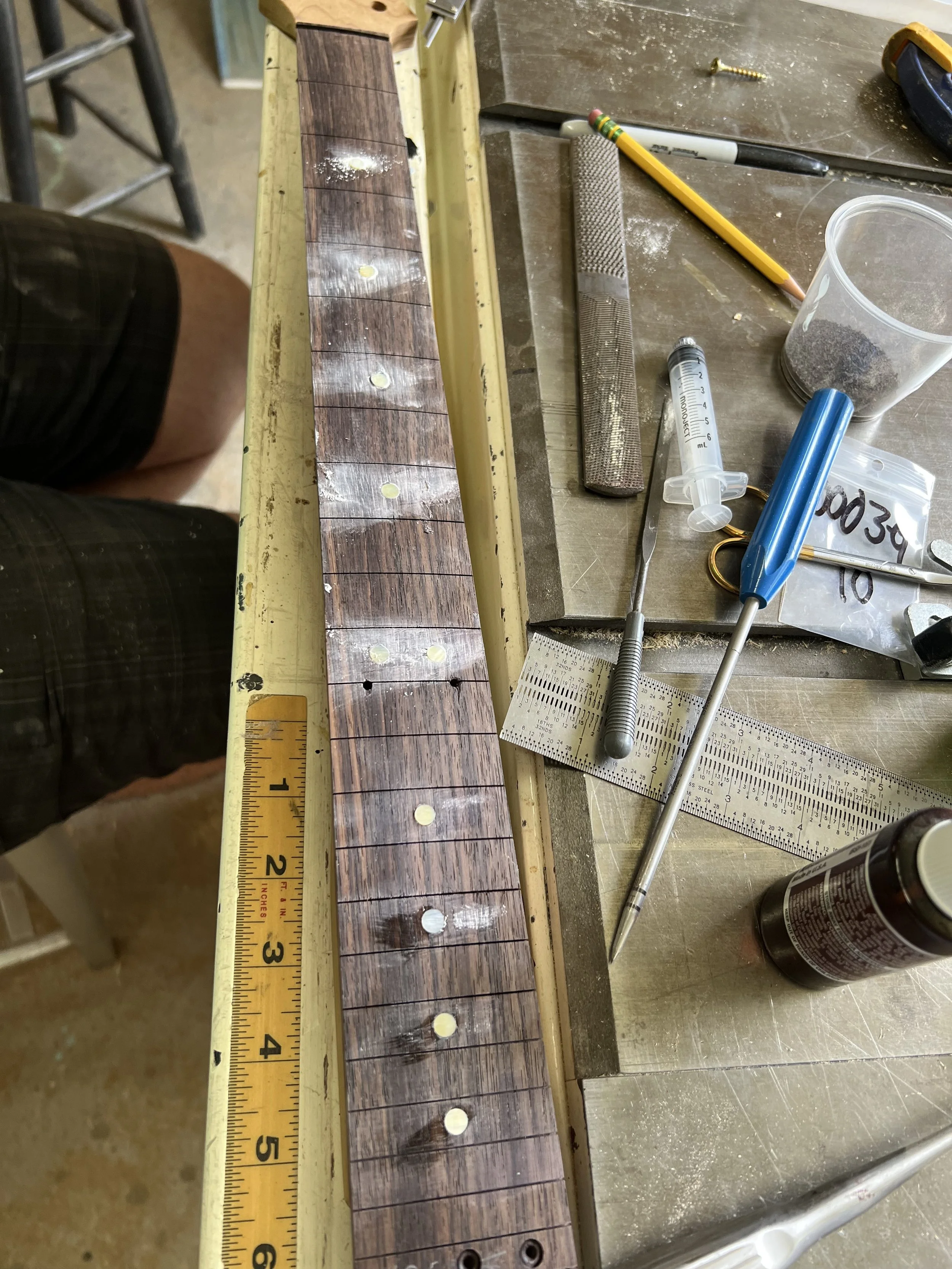

Golden Mother of Pearl Dots
We happened to use the Gold MOP, but will use clay, MOP, and any other traditional inlay as well
-

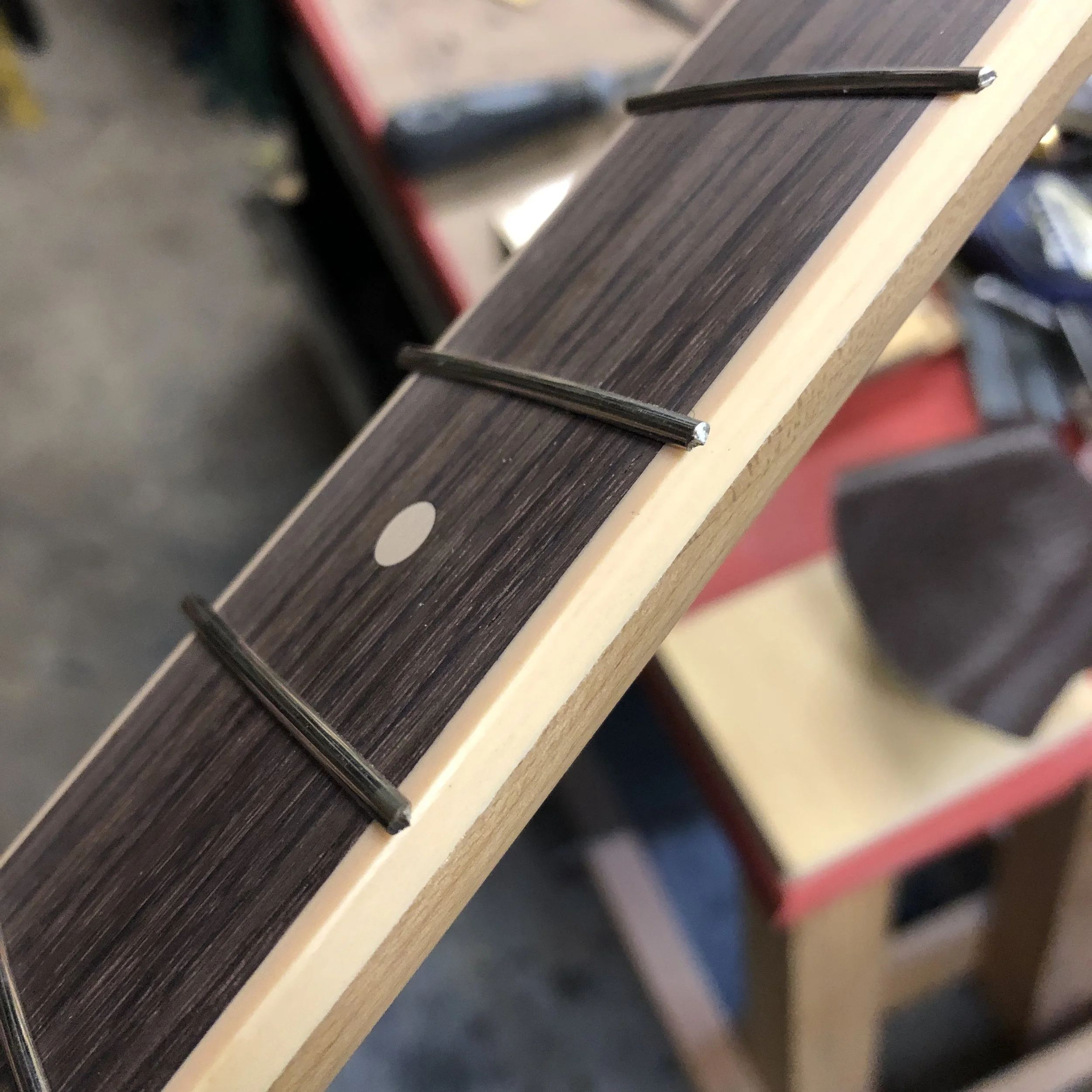

Custom Binding
Binding option, with fret trimmed inside
Paint and Finish
-
Classic Colors
Classic colors pulled and matched from original paint chips from the “Golden Era”
-
Sonic Blue Nitrocellulose
Along with color matching we only ever use Nitrocellulose lacquer on our guitars and bases
-
Candy Apple Red
A BP-3 awaiting multiple coats of clear lacquer to build the depth in the finish
-
DS-2 Pre-burst
Figured Maple awaiting a nitro sealer coat
-

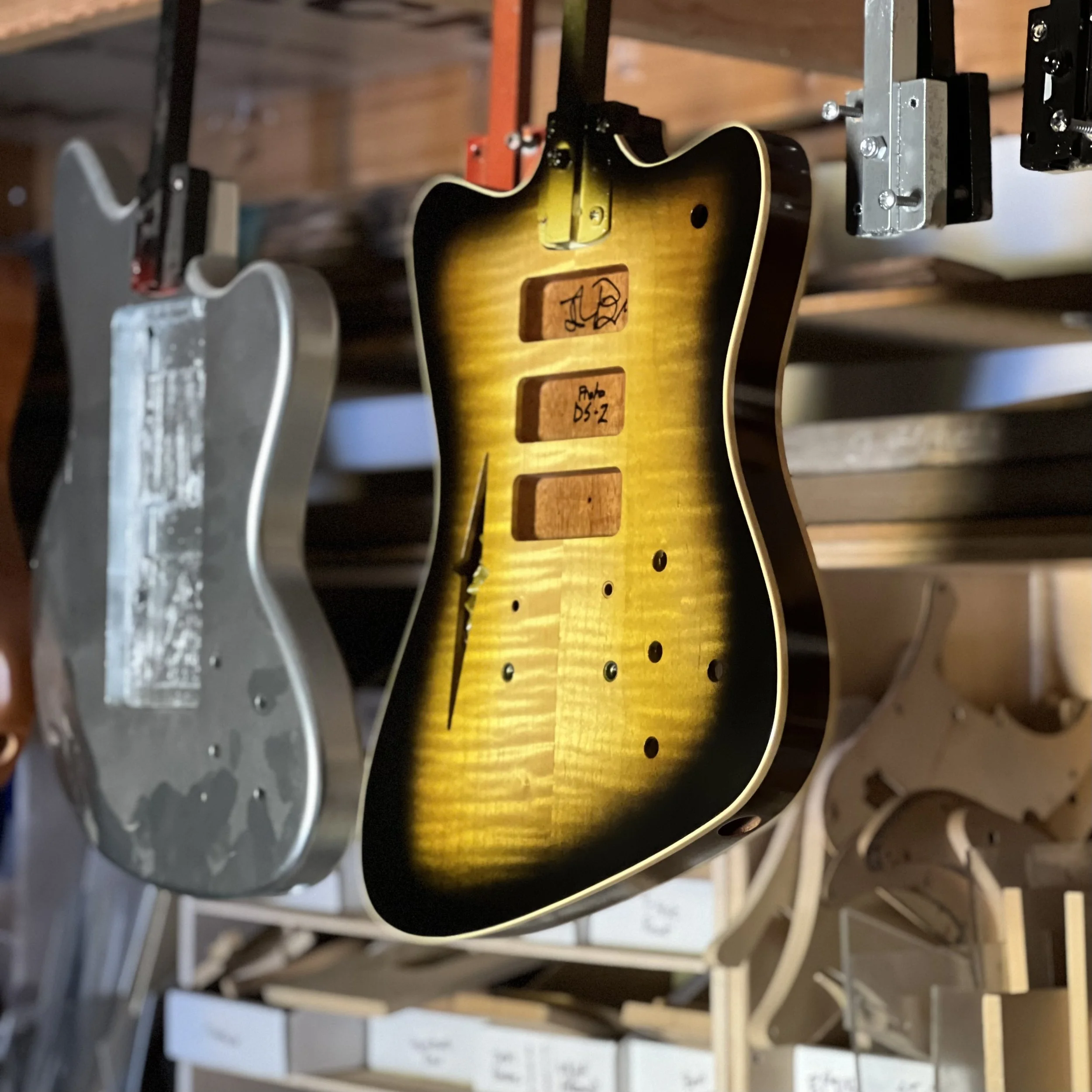

DS-2 Vintage Burst
DS-2 ready for clear coats after a multi-day yellow to black vintage burst
-

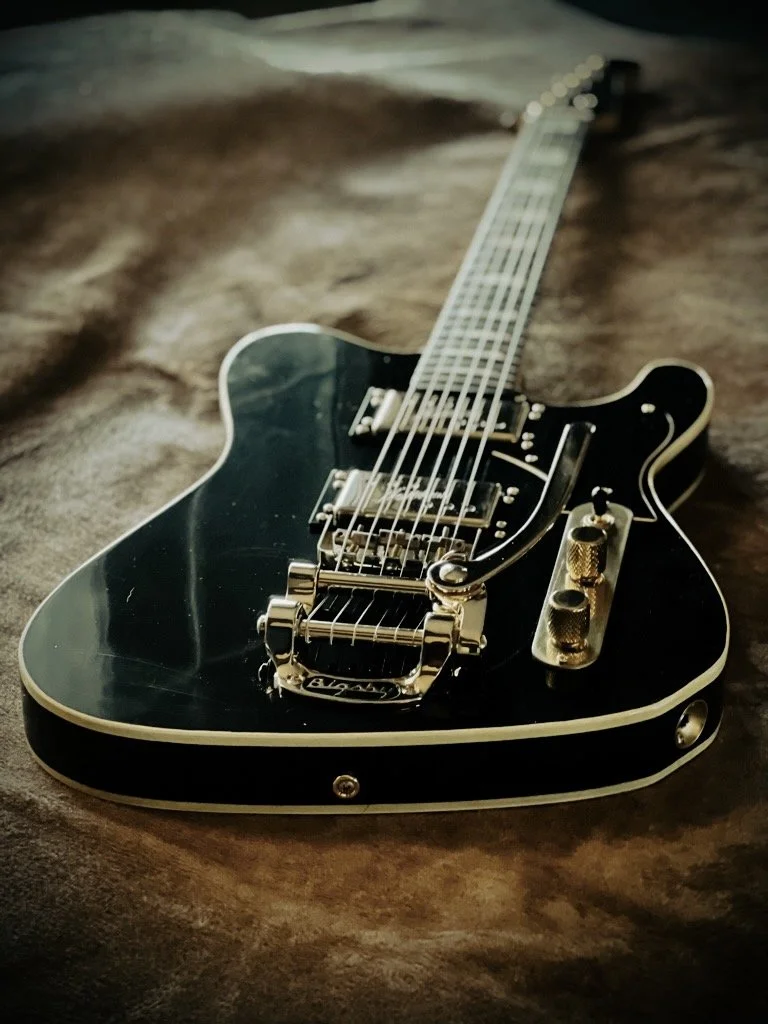

PT-1 With Matching Headstock
Black and bound PT-1 with its matching headstock both getting a relic’d yellow lacquer over top
-
3 Part Polish on Cherry-Red PT-1
Because we use automotive lacquer that was used on the very guitars from the ‘50’s and ‘60’s they need to be wet sanded and buffed and polished
-
PT-1 Hollywood Triple
Even if the guitar or bass doesn’t get a shot of compressed Nitro, I still apply the highest end brush-on nitrocellulose lacquer
-
Guitars and Basses From The "Golden Age"
Our bel.Sonique guitars and basses are made as though they came out of the ‘50’s and ‘60’s and rocked into the ‘70’s🤘 with light to heavily worn finishes
-

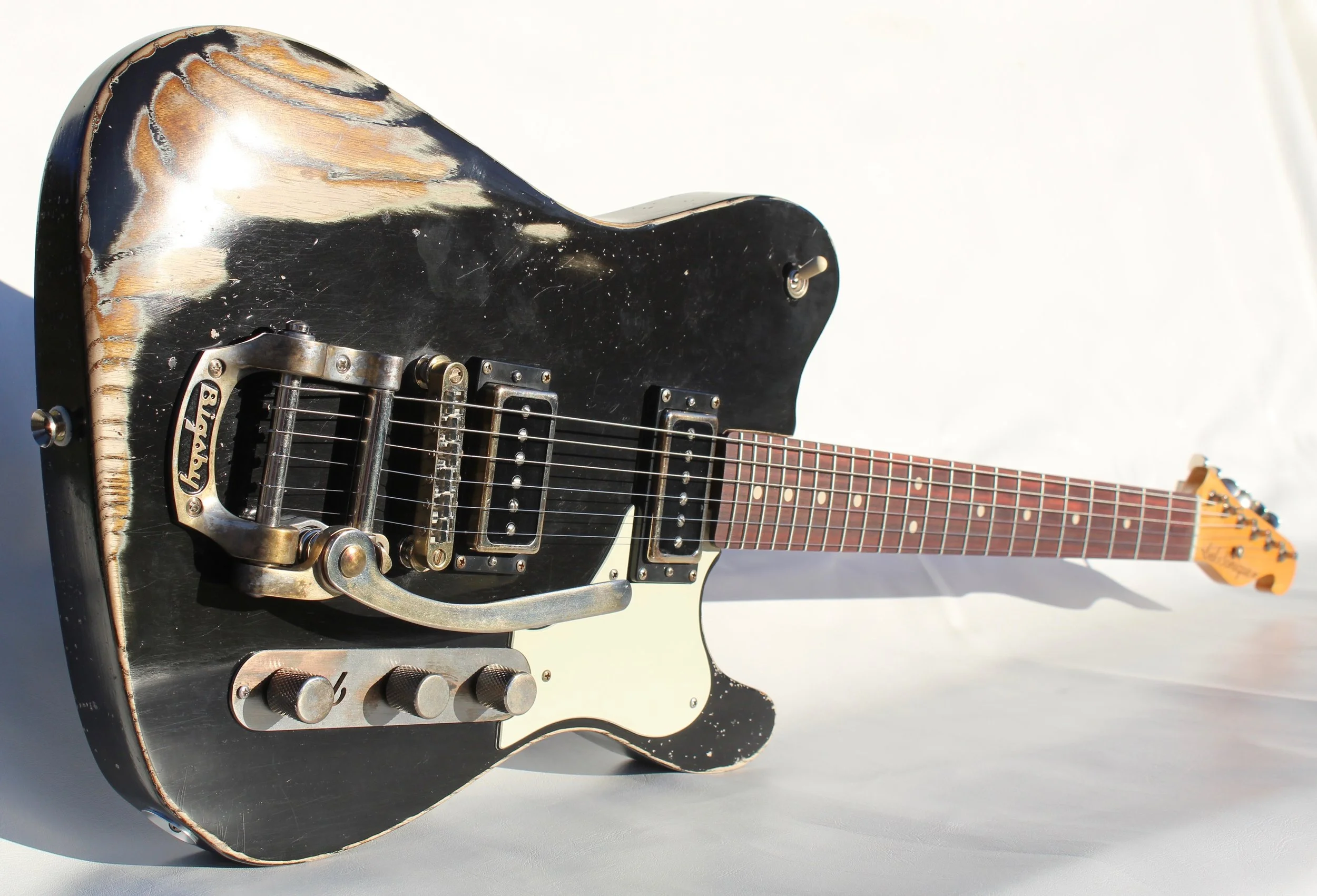

Heavier Relic'd PT-1
This was a customer’s request, prep goes into the whole build, from the wood selection to the various colors that come through, and to the hardware
Hardware, Electronics and Setup
-
Proprietary and Period Correct Hardware
bel.Sonique water-jetted and sourced hardware comes from stainless and cold rolled steels. Our sourced hardware is even from some of the vendors from the very “Golden Age”
-
Custom bel.Sonique 1-Off Hardware
Sometimes a project needs that special touch. These pieces were water jetted from .080” Copper, and additional hardware was plated in-house
-
High Grade Components
We source the industries highest grade components and strictest tolerances. CTS Pots and SOZO Caps
-

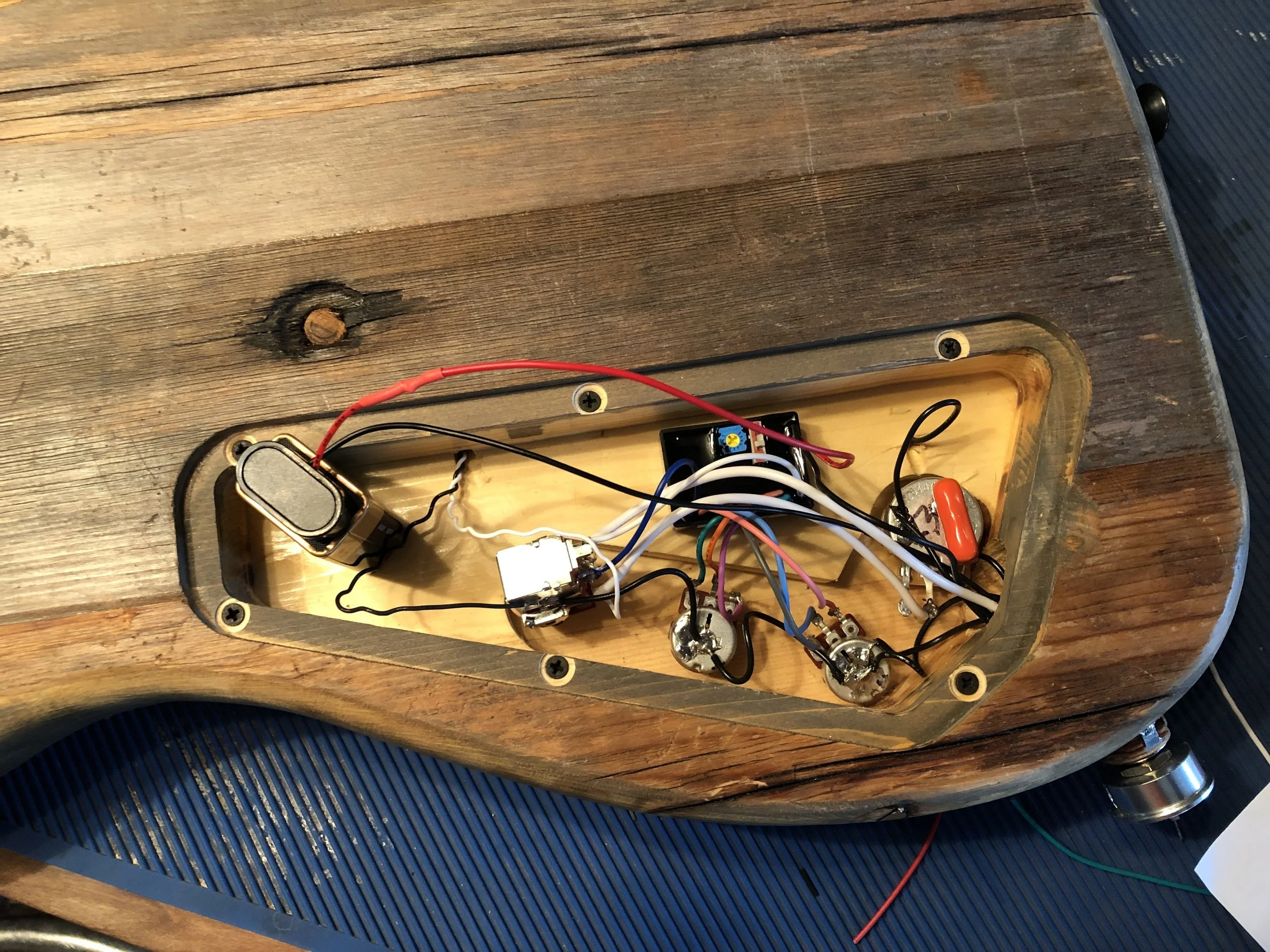

Modern Amenities
We strive for those old-school techniques in our builds, however there’s times that modern electronics and schematics meet a players existing preference and style.
-

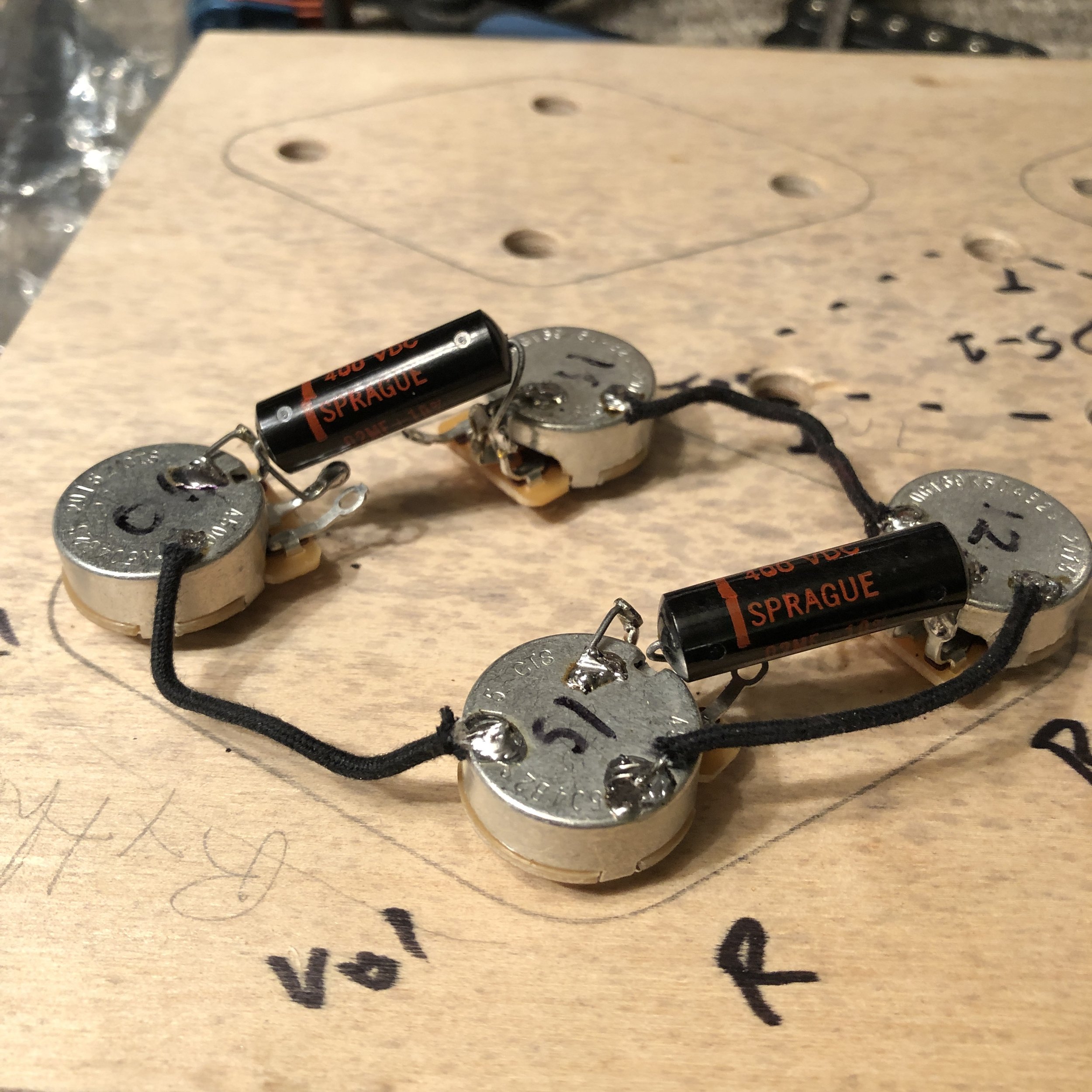

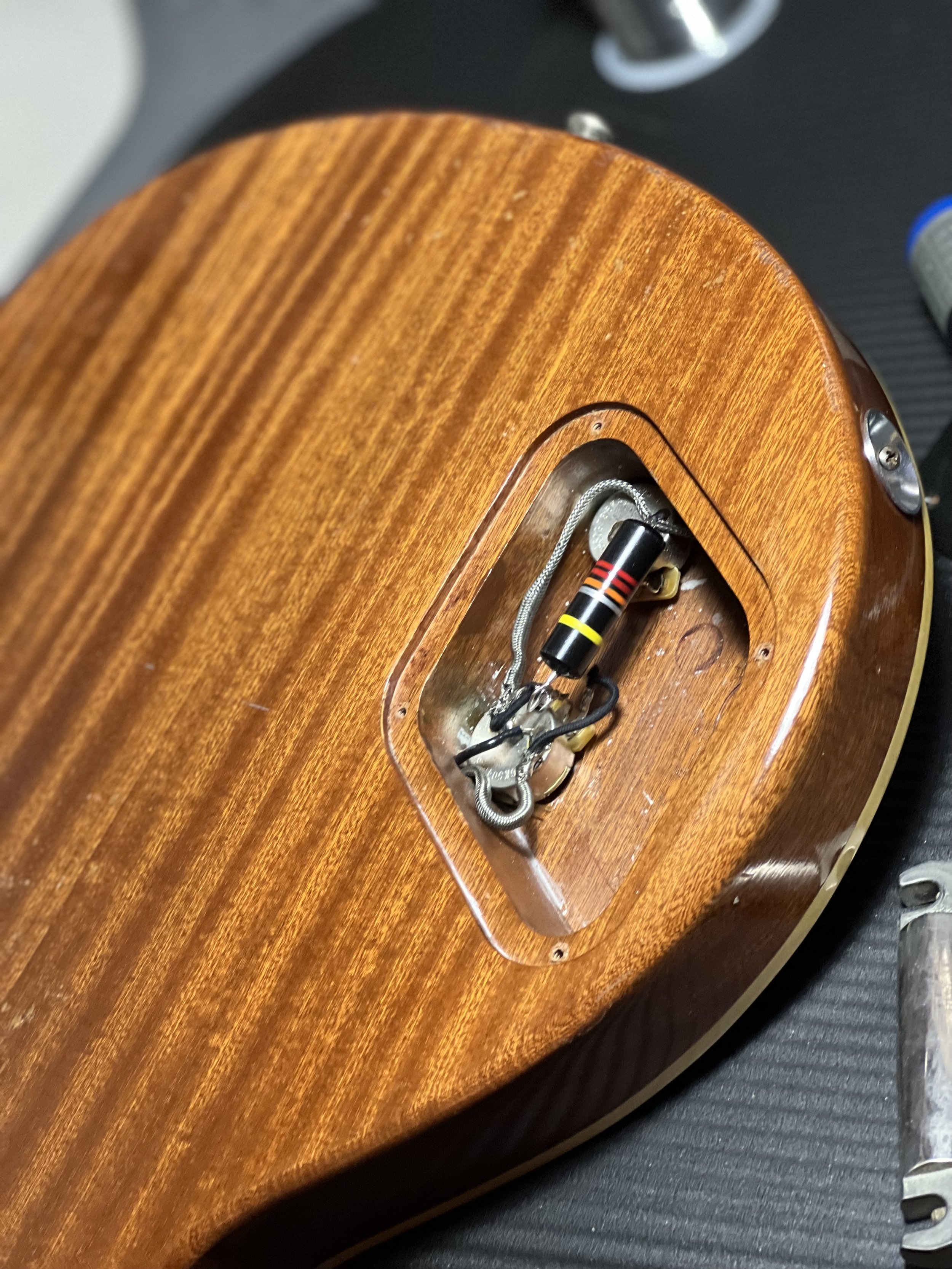

NOS Sprague Capacitor
Someone’s lucky when these are available
-
Vintage Recreated Jupiter Bumble Bee
Many others in the industry bringing bringing their techniques, so we’re able to source those long lost components from the “Golden Age”
-
Hollywood Triple Parts Laid Out
Everything from the CTS caps, Switchcraft 3-way, Lollar; Lollar-trons and OG Gretsch Arrows!
-

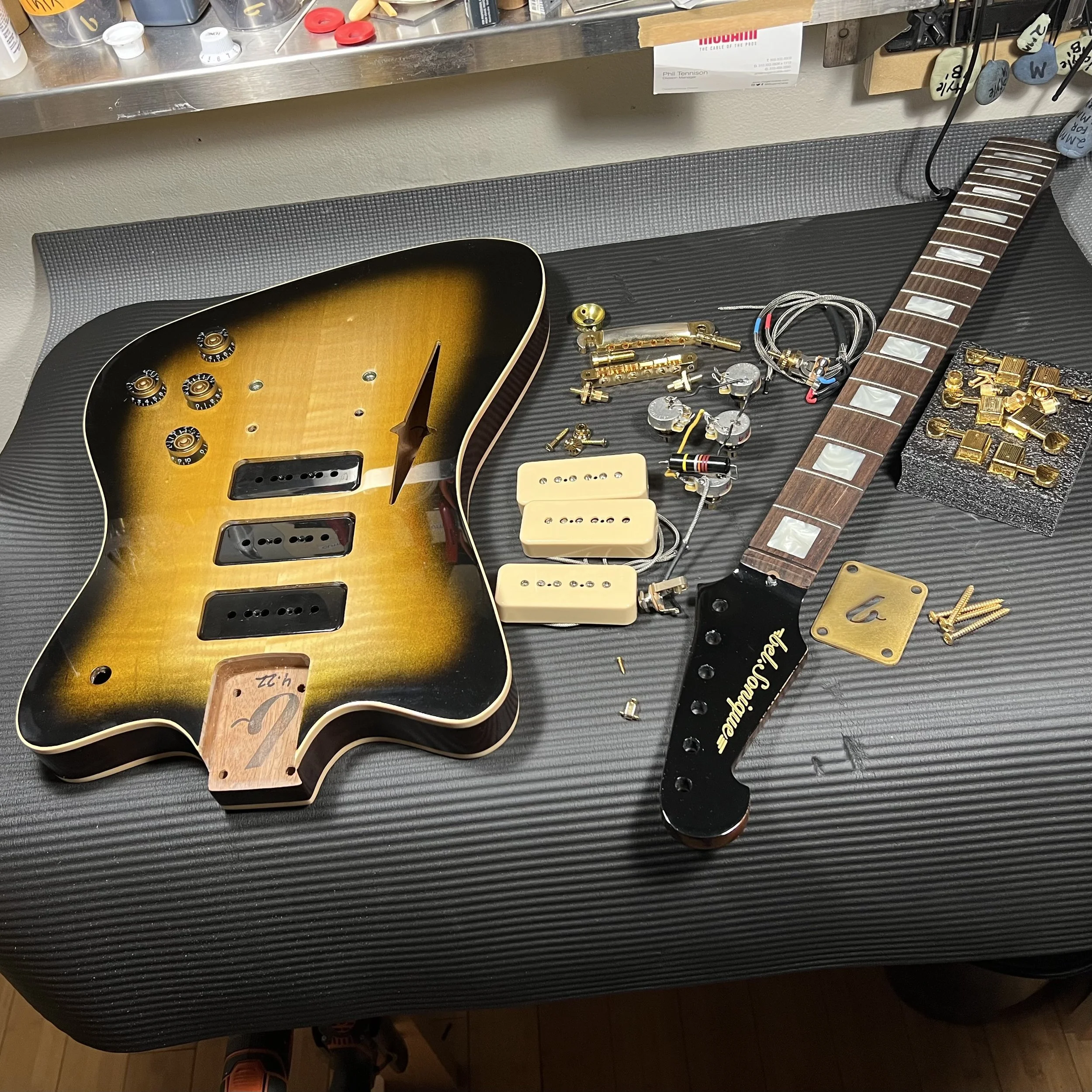

DS-2 Parts Laid Out
When we get orders for specific platings with our proprietary parts, we can now do small batch plating in house, even 24K gold!
